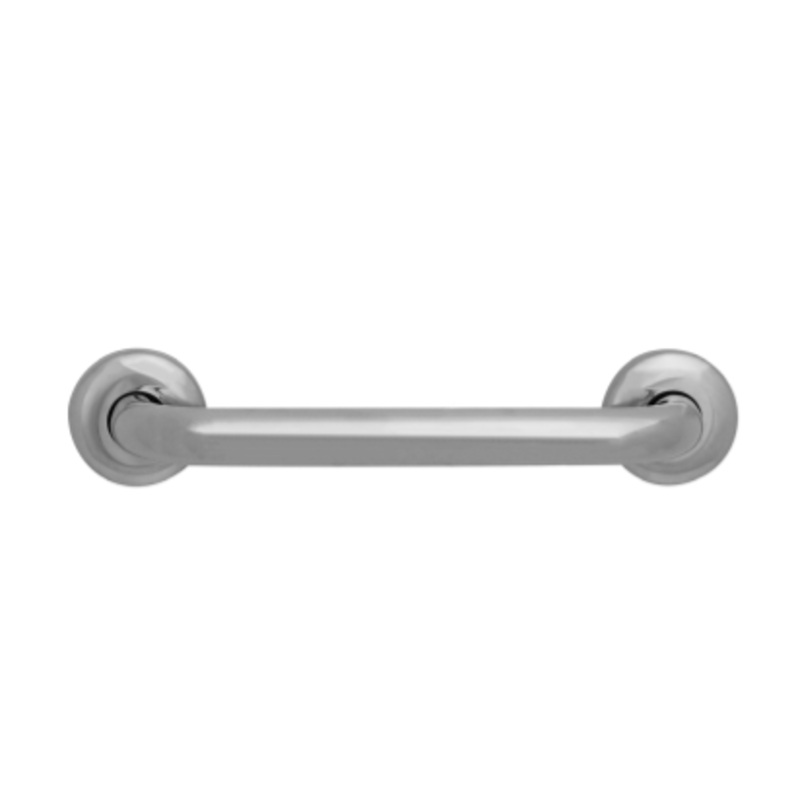

Materials & Features Stainless steel straight grab rails, available in a range of lengths meet the requirements of AS1428.1-2009 (incl. Amdt. 2010) when installed correctly. The snap flange cover conceals the fixings. Technical Detail Rail: 32mm [Dia], 304 Bright Polished Stainless Steel Fixings: By others SWL: 1100N Available Models RBA4008-030 Bright Polished Straight Grab Rail 300mm RBA4008-045 Bright Polished Straight Grab Rail 450mm RBA4008-060 Bright Polished Straight Grab Rail 600mm RBA4008-075 Bright Polished Straight Grab Rail 750mm RBA4008-090 Bright Polished Straight Grab Rail 900mm RBA4008-100 Bright Polished Straight Grab Rail 1000mm Additional sizes available upon request Installation Warning: Grab rails are no stronger than the anchors or walls to which they are attached and must be firmly secured in order to support the loads for which they are intended. Refer local codes and Installation Instructions for location of fixing points, method of attachment, etc.

Important: Installation instructions and current rough-in details should be furnished with each fixture. Do not rough in without certified dimensions. Dimensions are subject to manufacturers tolerance of +/-10mm.
