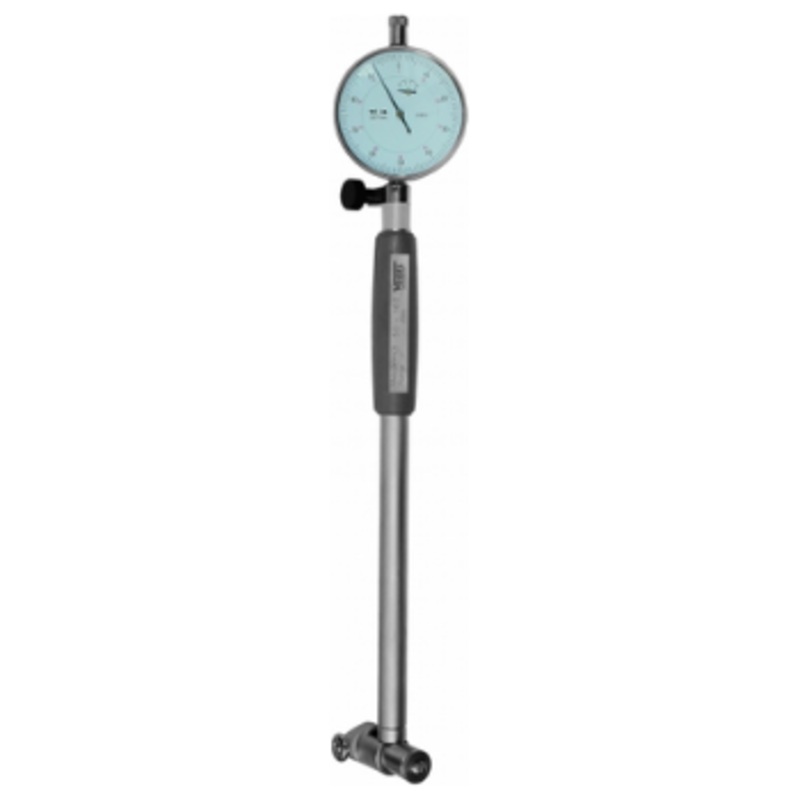

Vogel Dial Bore Gauges are used for quick and easy measuring and inspection of bores, cylinders and bore holes

These bore gauges are usually used before or after servicing operations to inspect tolerance and offsets of pipes and cylinders. If a cylinder has bloated or contracted, the dial gauge can show this offset up to an accuracy of 0.01mm.

• Digital and Analog Conversion Comes with analog dial indicator but can be changed to digital as long as the throat diameter is 8mm
• Carbide Tips last longer for more rigorous use
• Fine spring allows for accurate measurement
• Sturdy case prevents unintentional damage of parts
• High accuracy display depends on dial indicator used

How to use Bore Gauge

Step #1: Zero the dial indicator according to the reference point of the bore
Step #2: Insert bore gauge through the inner walls of the pipe
Step #3: Wiggle the gauge to find points that are out of tolerances and make corrections accordingly

Technical Information

Resolution: 0.01 mm
Setting gauge: depending onsize
Draw length: 35mm – 410mm (depending on size)
