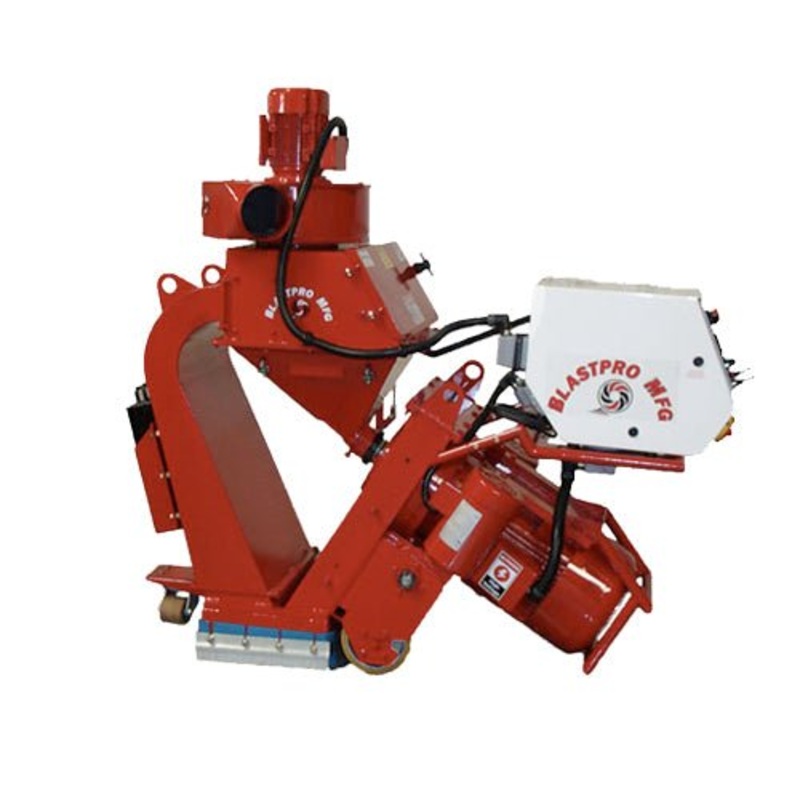

The BlastPro BP-505 is a high-performance shot blasting machine designed specifically for cleaning steel surfaces.

With its modular construction, the BP-505 can be dismantled to fit through a 24 manhole, making it ideal for confined space applications. This machine is an environmentally friendly and cost-effective solution for profiling horizontal steel surfaces while allowing for the immediate application of coatings.

Key Features

• 20 Blast Width Optimized for efficient steel surface preparation
• Modular Construction Disassembles to fit through a 24 manhole
• Independent Wheel Drives Provides superior maneuverability and control
• Precision Separation System Keeps shot cleaner and extends wear part lifespan
• Positive Sealing Shot Valve Prevents shot leakage, even with fine media
• Interlocking Liners Protects blast housing and reduces wear
• Sliding Cleanout Drawer Simplifies debris removal from the shot hopper
• Heavy-Duty Electrical Components UL508A Panel Facility engineered
• NEMA 4 Electrical Enclosure Ensures durability in harsh environments

Advantages

• High-Speed Performance Covers up to 1,200 ft/hr
• 50 ft/min Travel Speed Increases job site productivity
• Durable & Reliable Built with high-quality U.S.A.-manufactured components
• Minimal Downtime Readily available replacement parts, no lead time
• Tough & Wear-Resistant Electrical Cord Type W 4/4 for durability
• Eco-Friendly Operation Reduces waste and supports cleaner work environments

Performance Specifications

• Speed: 50 ft/min
• Capacity: 1,200 ft/hr
• Blast Width: 20″
• Power: 30 HP | 480V | 32A
• Weight: 2,200 lbs.
• Dimensions: 68 x 29.5 x 65

Why Choose the BP-505?

The BP-505 is the ideal solution for steel surface preparation, combining efficiency, durability, and ease of use. Its modular design makes it perfect for confined spaces, while its advanced components ensure long-lasting performance with minimal maintenance. Whether working on ship decks, tanks, or industrial steel floors, the BP-505 provides a superior blasting solution.
