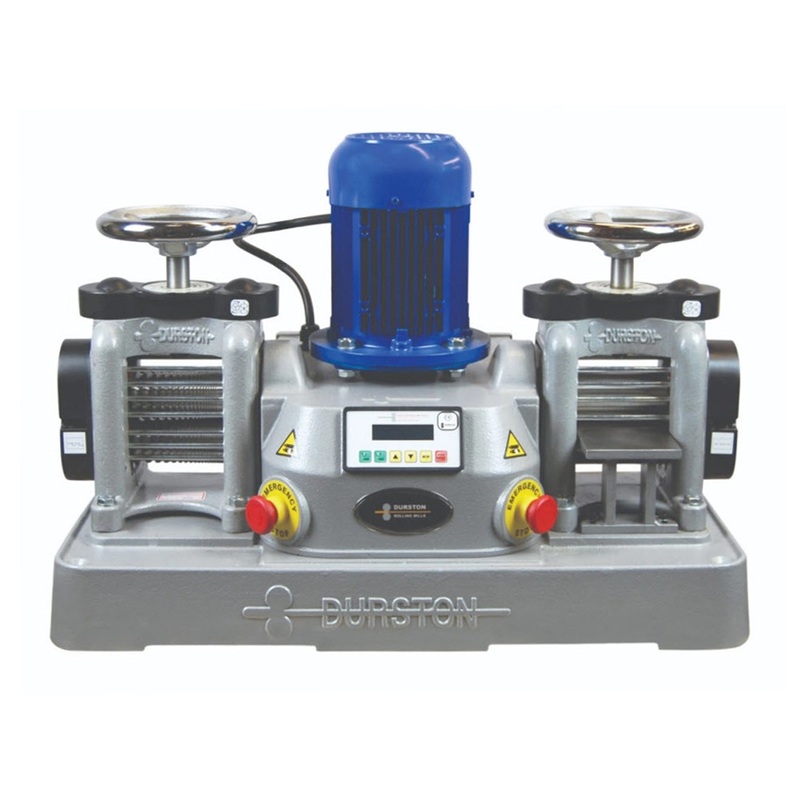

Rolling mills are designed to gradually reduce metal stock thicknesses to achieve the exact gauge size for your work. Durston Rolling Mills are compact, yet have everything you need to form metals. The DRM 130 Double-Sided Powered Rolling Mill is constructed from cast iron for optimal strength and rigidity. The 1.1 KW motor is powerful enough for continuous operation which is why Durston Tools mills have such a long working life. This versatile package has variable speeds with forward and reverse, and a highly efficient near-silent operation. The rolls are specially induction hardened to 64RC; the left barrel to a depth of 6 mm, ensuring that your flat rolls last a lifetime. The right barrel offers 19 square grooves for wire forming from 10 mm to 1 mm. Two sets of extension rollers provide a total of seven half-rounds. Safety features include two emergency stop buttons, safety bars at the front and rear of the mill, guards covering the extension rollers at both ends, as well as guards covering the top gears. Part of Durston Tools award-winning range of products available since 1961. We highly recommend that your Durston Tools rolling mills are securely fastened down for safety. Freight shipping required, please contact us at (855) 298-7627 for pricing.

Additional Details & Information:

Dimensions: 830 mm long x 390 mm wide x 540 mm high

Roller Type: Combination

Number of Grooves: 19

Voltage: 110V

Range: DRM-Powered

Side Extensions: 1.5, 2, 3 mm & 4, 6, 8 mm

Roller Measurements: 65 mm in diameter x 130 mm long

Maximum Sheet Capacity: 6 mm

Maximum Wire Capacity: 10 mm
