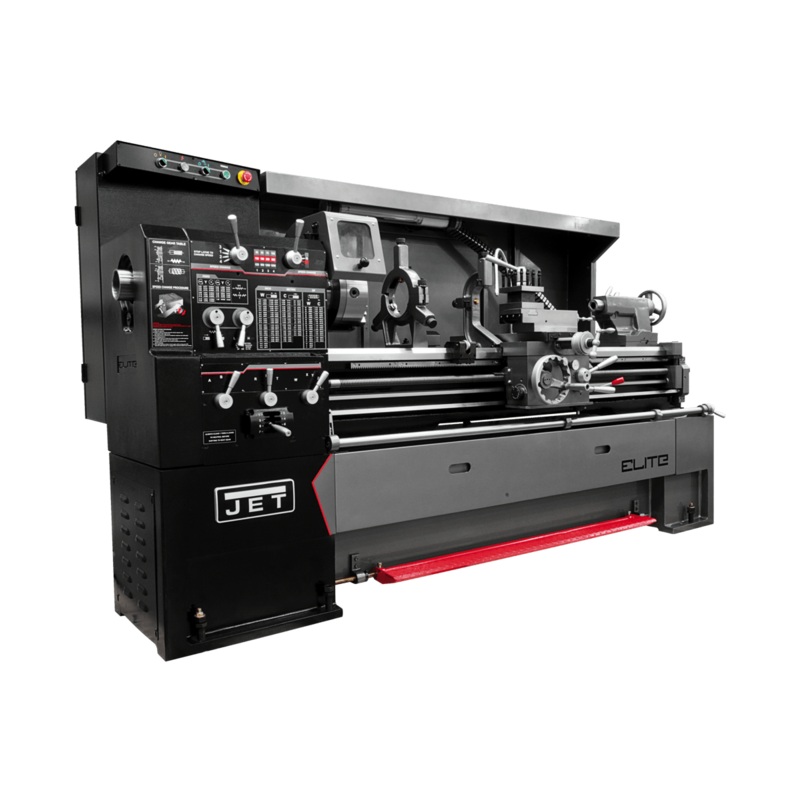

EGH-1740 With ACU-RITE 203 DRO

$149.00 $52,582.79

Combining the durability and strength of Meehanite castings with precision engineering, Elite Geared Head Lathes turn out high quality components turn after turn.Fully lit with CNC style lighting, the enclosed full-length splash guard is expertly designed

Share
  • Security Policy (Protecting Your Data, Ensuring Your Safety)
  • Delivery Policy (Free shipping on orders over $30)
  • Return Policy (60 day easy Return)
SKU: A5196862936 Category:

Combining the durability and strength of Meehanite castings with precision engineering, Elite Geared Head Lathes turn out high quality components turn after turn.

Fully lit with CNC style lighting, the enclosed full-length splash guard is expertly designed to contain all chips and coolant. Hardened and ground bedways and gears help reduce vibration, deflection, and provide accurate longitudinal movements. Designed with a universal gearbox to allow for a wide range of threading without gear changes, and Turcite-B coatings between the bed and carriage to provide smooth and accurate movement, these machines provide the perfect blend of performance and reliability you can come to expect from JET Elite.

More Information

Stock Number 892505
Amperage Draw @ 230V 3Ph 22
Amperage Draw @ 460V 3Ph 11
Compound Slide Travel (In.) 6-2/7
Diametral Pitch Threads Number 21.0000
Drive Geared Head
Length of Gap (In.) 7-2/3
Max Tool Size (In.) 1 x 1
Modular Pitch Threads Number 18.0000
Number of Inch Threads 45.0000
Number of Metric Threads 39.0000
Number of Spindle Speeds 12
Overall Dimensions (L x W x H) (In.) 94 x 44 x 68
Prop 65 Cancer and Reproductive Harm
Range of Cross Feeds (IPR) 0.00075 – 0.02
Range of Inch Threads (TPI) 2 – 72
Range of Longitudinal Feeds (IPR) 0.0015 – 0.04
Range of Metric Threads 0.2 – 14
Range of Spindle Speeds (RPM) 36 – 1,800
Size 17 x 40
Spindle Bore (In.) 3-1/8
Spindle Mount D1-6
Spindle Taper with Sleeve MT-5
Steady Rest Capacity (In.) 3/8 – 6-3/4
Style (Type) Engine
Swing Over Bed (In.) 17
Swing Over Cross Slide (In.) 11
Tailstock Spindle Travel (In.) 5
Weight (Lbs.) 3747
Width of Bed (In.) 12
