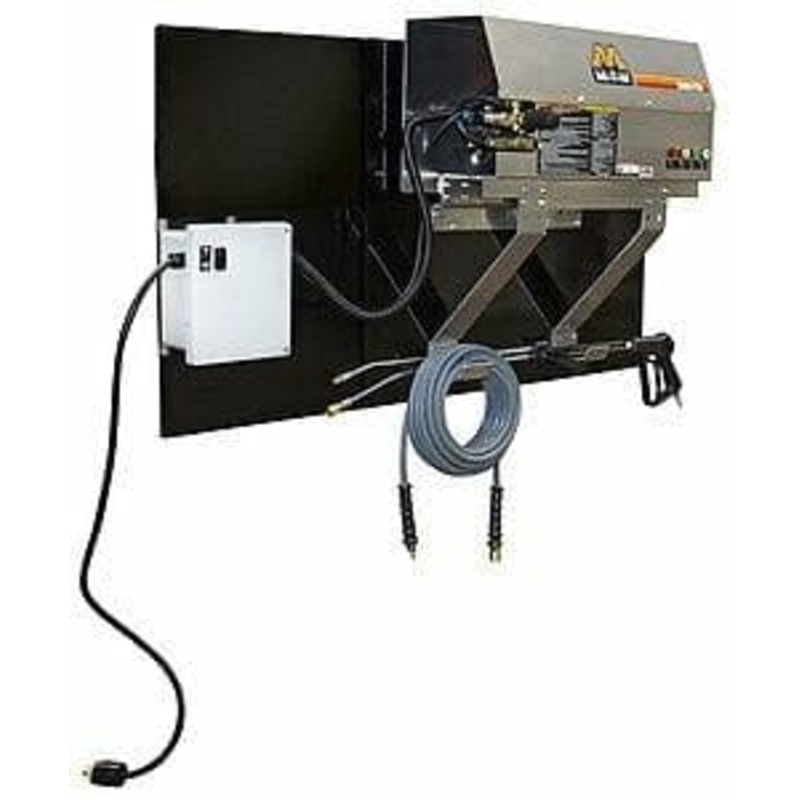

Designed to attach directly to a wall, this series offers a secure system for use in a wide range of locations. Featuring non-corrosive aluminum construction, it is perfect for high volume cleaning and sanitizing jobs and is especially versatile in factories, wash bays and food processing plants.

Pump: Stainless-steel and brass trapping unloader Forged brass manifold Thermal relief valve External quick connect low pressure detergent injector Pump accepts incoming water up to 165F

Motor: Totally enclosed fan-cooled electric motor with manual thermal overload protection 4-foot power cord

Frame: Aluminum base plate and frame Aluminum wall-mounting brackets Aluminum hose and gun/wand holder

Components: Time delay shutdown Remote mounted electrical box included, must be mounted within 3 -feet of unit

Unit Includes: Quick connect nozzles – 0, 15, 25 and 40 50-foot x 3/8-inch non-marking high pressure hose with quick connects Professional-grade insulated trigger gun with safety lock-off

Specifications

• PSI

  2000

• GPM

  3.9

• Horsepower/Motor

  6.0 HP, 230V, 1, 24.1A

• Pump

  General

• Mi-T-M No.

  3-0440

• Unloader

  Factory Preset

• Plug Type

  NEMA 6-30P

• Lance

  Adjustable, Dual, 36-inch

Weights & Dimensions

• Net Weight

  188.00 lbs.

• Shipping Weight

  248.00 lbs.

• Length

  31.00 in.

• Width

  17.25 in.

• Height

  18.00 in.

Options

• CX-0078 Remote Box

  Adds control box which may be mounted away from unit to control on/off, not available on models with auto start/stop

• CX-0109 Additional Remote Box

  Additional remote boxes (up to 3)

• CX-0112 Auto Start/Stop

  When trigger gun is released, the timer will turn unit off; when trigger gun is pulled unit will restart
