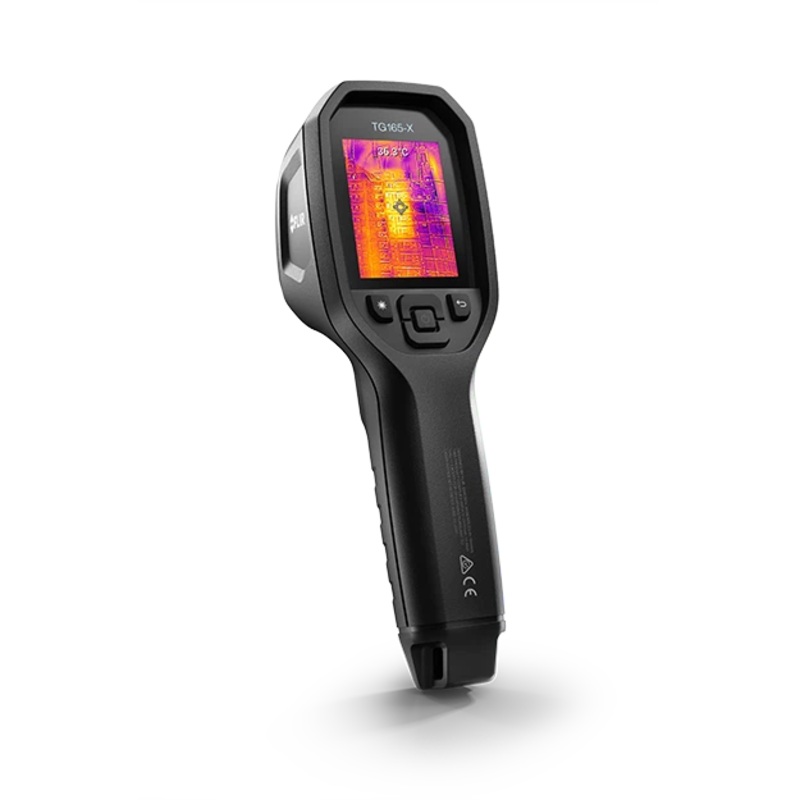

FLIR ‘TG165-XT’ Spot Thermal Camera

TG165-XT

The FLIR TG165-X helps you visualize the hot and cold spots that can indicate electrical faults, mechanical break-downs, or air and water leaks. This all-in-one, non-contact measurement and imaging tool displays temperature anomalies on screen, allowing you to inspect efficiently and pinpoint the source of problems faster than with a single-spot IR thermometer. See components clearly and even read labels thanks to FLIR patented MSX image enhancement, which adds visual details to full thermal images. The bullseye laser ensures youre always targeting the right component for measurement while easy-to-use buttons and settings help you complete the job quickly and stress-free. With internal storage for up to 50,000 images and a rechargeable Li-ion battery, the FLIR TG165-X is ready to go right out of the box.

Specifications:

• IR Resolution: 80 60 pixels
• Thermal Sensitivity/NETD: <70 mK
• Accuracy: 50C to 100C (122F to 212F), acc. 1.5C (3F); 0C to 50C (32F to 122F) and 100C to 300C (212F to 572F), acc. 2.5C (5F); -25C to 0C (-13F to 32F), acc. 3C (7F)”
• Field of view (FOV): 51 66
• Image Modes: MSX (Multi Spectral Dynamic Imaging), visual
• Storage Media: eMMC 4 GB

IMAGING & OPTICAL

• Camera software update: Using USB cable or SD card
• Color Palettes: Iron, Rainbow, Whitehot, Blackhot, Arctic, Lava
• Detector Pitch: 17 m
• Digital image enhancement: No
• Display resolution: 320 240 pixels
• Field of View: 71 56, adapts to the IR lens
• Field of view (FOV): 51 66
• Focal Plane Array (FPA) – Spectral range: Uncooled microbolometer/7.514 m
• Focus: Fixed
• Gallery: Yes
• Image Frequency: 8.7 Hz
• Image Modes: MSX (Multi Spectral Dynamic Imaging), visual
• IR Resolution80 60 pixels
• Laser: Class 1
• Minimum Focus Distance: 0.3 m (0.98 ft)
• Minimum Measurement Distance: 0.26 m (0.85 ft.)
• Resolution: 2 MP (1600 1200 pixels)
• Thermal Sensitivity/NETD: <70 mK

MEASUREMENT & ANALYSIS

• Accuracy: 50C to 100C (122F to 212F), acc. 1.5C (3F); 0C to 50C (32F to 122F) and 100C to 300C (212F to 572F), acc. 2.5C (5F); -25C to 0C (-13F to 32F), acc. 3C (7F)”
• Distance to Spot Ratio: (D:S)24:1
• Emissivity Correction: Yes: 4 pre-set levels with custom adjustment of 0.10.99
• Object Temperature Range: -25C to 300C (-13F to 572F)
• Set-up Commands: Local adaptation of units, language, date, and time formats; Screen brightness (high, medium, low); Gallery, deletion of images
• Spot Meter: Center spot on/off
