Flares and burnishes 3/16, 1/4, 5/16, 3/8, 1/2 and 5/8 O.D. tubing.

Description

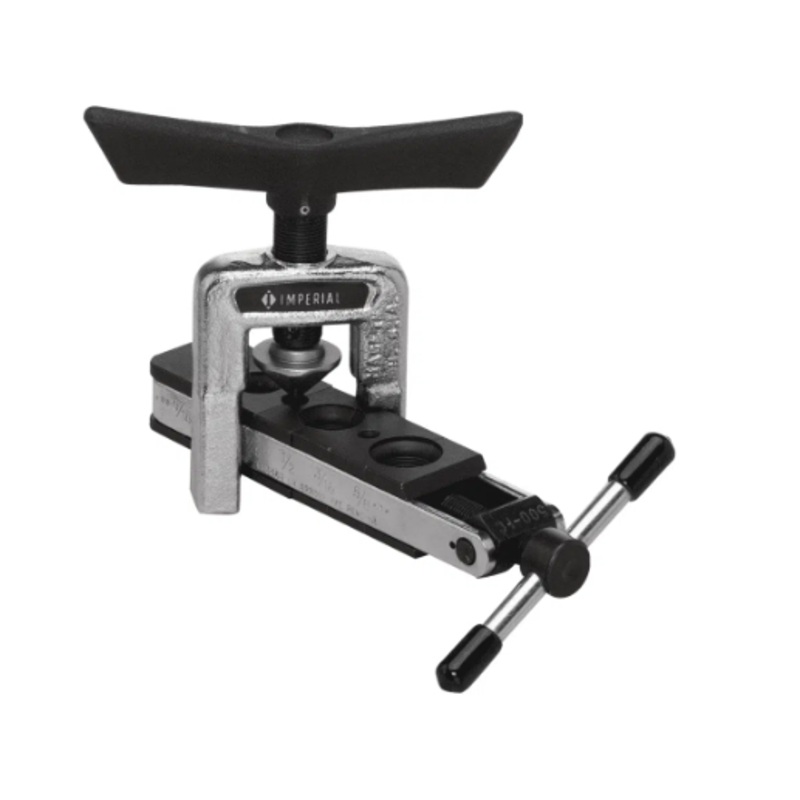

Faceted, hardened steel, chrome-finished cone rolls out perfect 45 flares above the die block, and automatically burnishes the flare face reducing the need for deburring. Original wall thickness is maintained at the base of the flare. Slip-on yoke permits use in tight quarters, where there is little space between the nut and tube end. A larger handle, with better leverage, and precision threads on the feed screw make flaring effortless. Heat-treated dies grip tubing without scoring. Satin chrome and black finish.

FEATURES:

• Features a faceted, hardened steel, chrome-finished cone which rolls out perfect 45 flares above the die block
• The cone automatically burnishes the flare face, reducing the need for deburring
• The 500-FC maintains the original wall thickness at the base of the flare
• The slip-on yoke permits it to be used in tight quarters, where there is little space between the nut and tube end
• Large handle gives better leverage, and precision threads on the feed screw make flaring effortless
• Satin chrome and black finish.

INCLUDES:

1 x 500FC Rol-Air 45 Flaring Tool (No case), 1 x English Instructions and 1 x Limited Life Time Warranty.

SPECIFICATIONS:

• Type: Flaring Tool
• Product Code: 500FC
• Brand: Imperial
• Flares: 3/16, 1/4, 5/16, 3/8, 1/2 and 5/8 O.D. tubing
• Limited Life Time Warranty.
