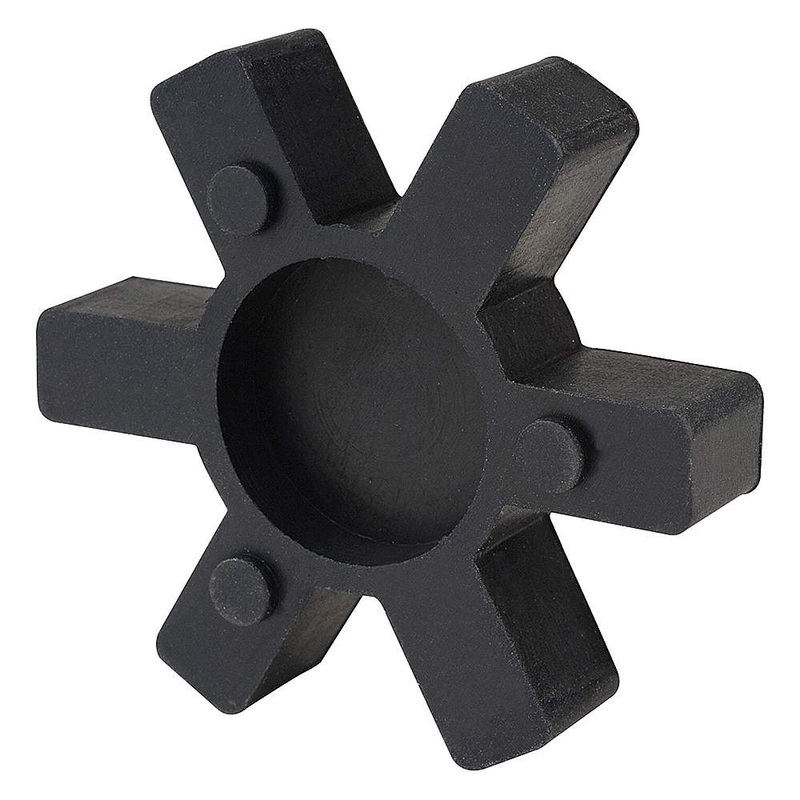

insert buna L-050, L050LoveJoy, Maska, TbWoods

Technical Specs

• Item – Jaw Coupling SpidersJaw Coupling Insert
• Size – Jaw CouplingsL050
• Material – SpidersBuna N
• Rated Torque26 in.-lb.
• Max. RPM18,000
• HP Rating @ 100 RPM0.04
• Temp. Range-40 Degrees to 212 Degrees F
• Max. Bore (In.)0.625
• HP Rating @ 300 RPM0.1
• HP Rating @ 1200 RPM0.5
• HP Rating @ 1800 RPM0.8
• HP Rating @ 3600 RPM1.5
• ColorBlack
• Length (In.)1.06
• Width (In.)1.06
• Height (In.)0.42
• Accommodates1 Degree Angular and 0.015″ of Parallel Misalignment
