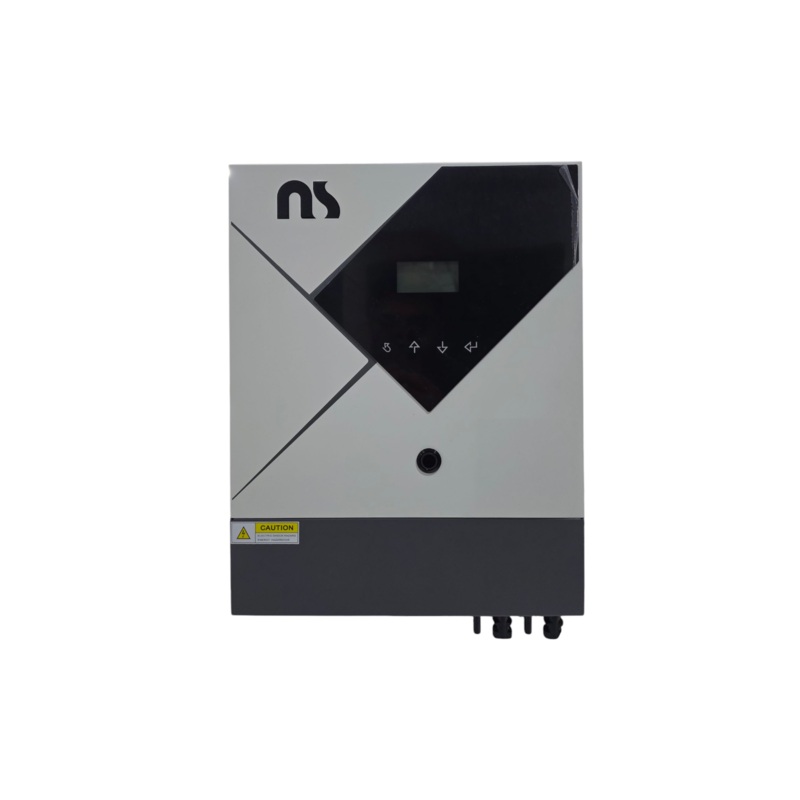

NS Axpert VM II Elite 6KP 6000W Hybrid Solar Inverter

Key Features:

Dual Inputs & Outputs Efficient smart energy management with flexible power distribution.

High PV Input Capacity Supports up to 10,000W solar power with 27A max input current.

Wide PV Voltage Range Operates between 60VDC to 450VDC for greater solar compatibility.

Battery Management System (BMS) Support Built-in communication port ensures smooth integration with lithium and lead-acid batteries.

WiFi & Mobile App Monitoring Remote monitoring and OTA firmware upgrades for seamless system updates.

Enhanced Safety & Efficiency Pre-charge circuit reduces inrush current, plus built-in PV DC switch and true battery reverse polarity protection.

Silent & Energy Efficient Low-noise operation with minimal no-load power consumption.

Parallel Operation Support Expand power capacity by connecting up to 2 units in parallel.

External CT Sensor Guarantees 100% self-consumption, optimizing your energy usage.

Built-in Meter Calibration Ensures accurate system operation for optimized performance.

Pure Sine Wave Output Stable electricity supply for sensitive appliances and electronic devices

Technical Specifications:

General Information:

Model: Axpert VM II Elite 6KP

Rated Power: 6000VA / 6000W

Input:

Voltage Range:

170-280 VAC (For Personal Computers)

90-280 VAC (For Home Appliances)

Frequency50Hz/60Hz (Auto Sensing)

Output:

Voltage Regulation: 230V 5%

Surge Power: 12,000VA

Efficiency (Peak): 93%

Transfer Time:

10ms (For Personal Computers)

20ms (For Home Appliances)

Waveform: Pure Sine Wave

Battery:

Battery Voltage: 48VDC

Floating Charge Voltage: 54VDC

Overcharge Protection: 63VDC

Solar Charger & AC Charger:

Solar Charger Type: MPPT

Maximum PV Array Open Circuit Voltage: 500VDC

Maximum PV Input Power: 10,000W

Maximum PV Input Current: 27A

MPP Voltage Range: 60-450VDC

Maximum Solar Charge Current: 120A

Maximum AC Charge Current: 100A

Maximum Total Charge Current: 120A

Physical & Communication:

Dimensions (D x W x H): 144mm x 348mm x 446mm

NetWeight 12.5 kg

Communication Interfaces: RS232 / RS485 / CAN / WiFi

Operating Environment:

Humidity: 5% to 95% Relative Humidity (Non-condensing)

Operating Temperature: -10C to 50C

Storage Temperature: -15C to 60C

Package Includes:

1 x NS Axpert VM II Elite 6KP Inverter

User Manual

Connection Cables

Order Now & Upgrade Your Solar System with WOCEL’s Advanced Hybrid Inverter!
