MAGNETIC DRILL FOR PIPE | DRILL HOLES UP TO 2-1/2″ DIA.

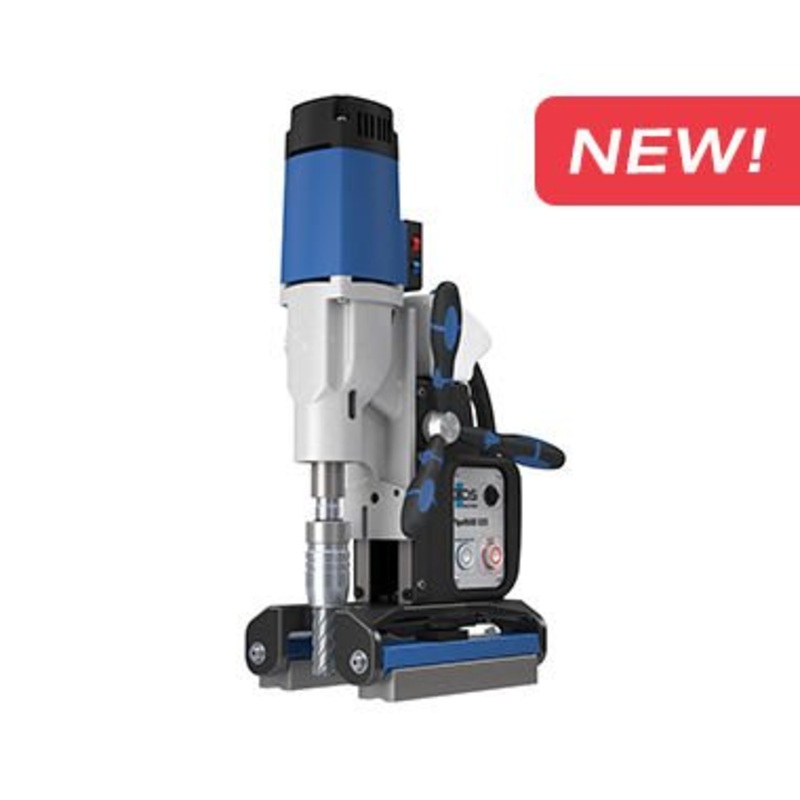

TheNEWPipeMAB 525 magnetic drill dramatically reduces the time and effort required to drill, tap, ream and countersink in pipe. Equipped with a patented swivel magnetic clamping system, PipeMAB models can drill on pipe 3 (85mm) OD and larger, inner pipe wall (ID) as well as flat and curved surfaces. The 2 permanent magnets strong clamping force allows for great flexibility with adhesion on ferrous materials as thin as 9/64.

This pipe system combined with the features of the PipeMAB 525 makes for the most versatile pipe drilling machine on the market.

Features & Benefits:

• Flexibility:Ideal for drilling, tapping, reaming and countersinking on pipe, flat & curved surfaces
• Increased Safety:Highly stable, permament magnet stays active independent of electricity
• Increase Cutting Tool Life:Variable speed control, adjustable torque and automatic lubrication for reduced cutting tool costs andincreasedlife
• Strong Magnets:Adhere to material as thin as 9/64″ (3 mm)
• Elongated Tool Holder:For maximum utilization of pipe drilling machine stroke
• Accuracy:2 magnet system allows the magnetic drill to swing away for clearing debris and hole inspection
• Maneuverability:At only 43lbs and with a patented swing arm system the Pipemab 525 can be moved and adjusted with ease
