Power-Stud 1/4″ x 3/4″ – 500 Units

Power-Stud 1/4″ x 3/4″ – 500 Units

$128.23 $427.43

STAINLESS STEEL WEDGE EXPANSION ANCHORThe Power-Stud anchor, is a fully threaded, torque-controlled, wedge expansion anchor. It is available in a threaded version suitable for applications in solid concrete and grout-filled concrete masonry. The threaded v

Size:
Share
  • Security Policy (Protecting Your Data, Ensuring Your Safety)
  • Delivery Policy (Free shipping on orders over $30)
  • Return Policy (60 day easy Return)
SKU: A5196861206 Category:
Description Reviews (0)

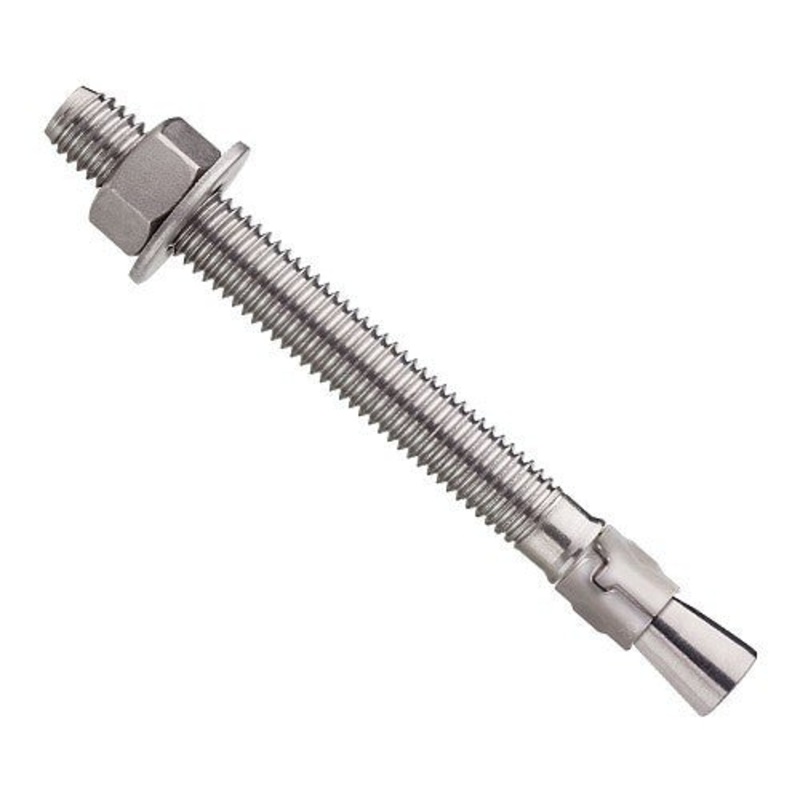

STAINLESS STEEL WEDGE EXPANSION ANCHOR

The Power-Stud anchor, is a fully threaded, torque-controlled, wedge expansion anchor. It is available in a threaded version suitable for applications in solid concrete and grout-filled concrete masonry. The threaded version is produced in 304 stainless steel and 316 stainless steel.

GENERAL APPLICATION & USES

APPLICATIONS

  • Lighting Standards and Base Plates
  • Sills and Support Ledgers
  • Retrofit Projects and Machinery Anchorage
  • Food and Beverage Facilities
  • Water Treatment Plants and Marine Applications

APPROVALS & LISTINGS

APPROVALS

  • Tested in accordance with ASTM E488
  • Federal GSA Specification Meets the descriptive and proof load requirements of CID A-A-1923A, Type 4
CATALOG NUMBER ANCHOR DIAMETER ANCHOR LENGTH THREAD LENGTH ANCHOR MATERIAL PACK QTY
07300-PWR 1/4″ 1-3/4″ 3/4″ TYPE 304 SS 100
07600-PWR 1/4″ 1-3/4″ 3/4″ TYPE 316 SS 100
07302-PWR 1/4″ 2-1/4″ 1-1/4″ TYPE 304 SS 100
07602-PWR 1/4″ 2-1/4″ 1-1/4″ TYPE 316 SS 100
07304-PWR 1/4″ 3-1/4″ 2-1/4″ TYPE 304 SS 100
07604-PWR 1/4″ 3-1/4″ 2-1/4″ TYPE 316 SS 100
07310-PWR 3/8″ 2-1/4″ 1-1/4″ TYPE 304 SS 50
07610-PWR 3/8″ 2-1/4″ 1-1/4″ TYPE 316 SS 50
07312-PWR 3/8″ 2-3/4″ 1-5/8″ TYPE 304 SS 50
07612-PWR 3/8″ 2-3/4″ 1-5/8″ TYPE 316 SS 50
07313-PWR 3/8″ 3″ 1-7/8″ TYPE 304 SS 50
07613-PWR 3/8″ 3″ 1-7/8″ TYPE 316 SS 50
07314-PWR 3/8″ 3-1/2″ 2-3/8″ TYPE 304 SS 50
07614-PWR 3/8″ 3-1/2″ 2-3/8″ TYPE 316 SS 50
07315-PWR 3/8″ 3-3/4″ 2-5/8″ TYPE 304 SS 50
07615-PWR 3/8″ 3-3/4″ 2-5/8″ TYPE 316 SS 50
07316-PWR 3/8″ 5″ 3-1/8″ TYPE 304 SS 50
07616-PWR 3/8″ 5″ 3-1/8″ TYPE 316 SS 50
07320-PWR 1/2″ 2-3/4″ 1-3/8″ TYPE 304 SS 50
07620-PWR 1/2″ 2-3/4″ 1-3/8″ TYPE 316 SS 50
07322-PWR 1/2″ 3-3/4″ 2-3/8″ TYPE 304 SS 50
07622-PWR 1/2″ 3-3/4″ 2-3/8″ TYPE 316 SS 50
07323-PWR 1/2″ 4-1/2″ 3-1/8″ TYPE 304 SS 50
07623-PWR 1/2″ 4-1/2″ 3-1/8″ TYPE 316 SS 50
07324-PWR 1/2″ 5-1/2″ 4-1/8″ TYPE 304 SS 50
07624-PWR 1/2″ 5-1/2″ 4-1/8″ TYPE 316 SS 50
07326-PWR 1/2″ 7″ 5-5/8″ TYPE 304 SS 25
07626-PWR 1/2″ 7″ 5-5/8″ TYPE 316 SS 25
07330-PWR 5/8″ 3-1/2″ 2″ TYPE 304 SS 25
07630-PWR 5/8″ 3-1/2″ 2″ TYPE 316 SS 25
07332-PWR 5/8″ 4-1/2″ 3″ TYPE 304 SS 25
07632-PWR 5/8″ 4-1/2″ 3″ TYPE 316 SS 25
07333-PWR 5/8″ 5″ 3-1/2″ TYPE 304 SS 25
07633-PWR 5/8″ 5″ 3-1/2″ TYPE 316 SS 25
07334-PWR 5/8″ 6″ 4-1/2″ TYPE 304 SS 25
07634-PWR 5/8″ 6″ 4-1/2″ TYPE 316 SS 25
07336-PWR 5/8″ 7″ 5-1/2″ TYPE 304 SS 25
07636-PWR 5/8″ 7″ 5-1/2″ TYPE 316 SS 25
07338-PWR
