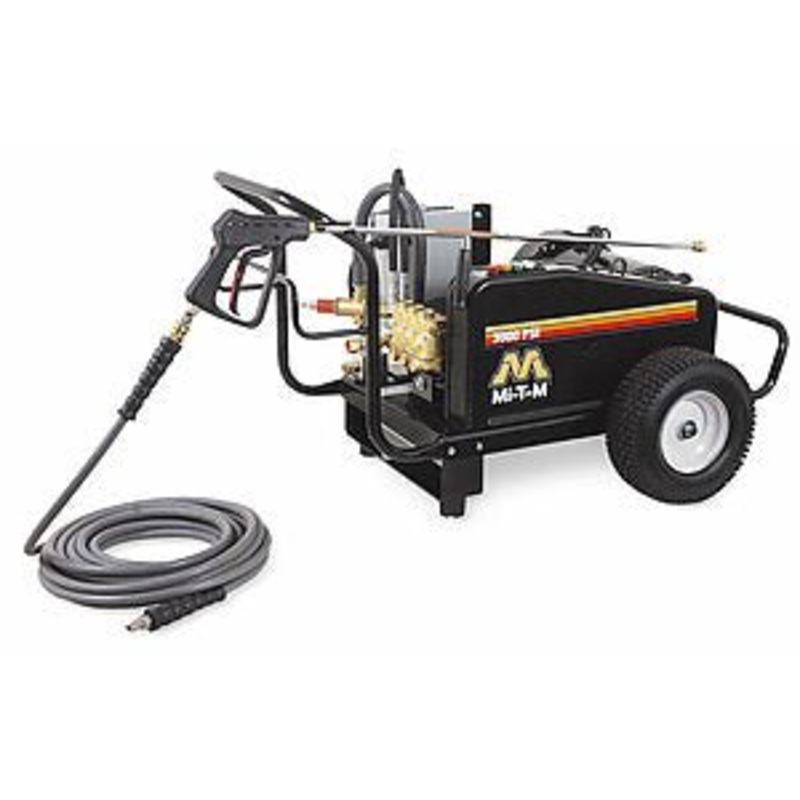

CW-3004-4ME3

With up to 5000-PSI of cleaning power, this series is used for paint preparation and mold and mildew removal around commercial facilities, barns and large workshops.

Product Sheet

Pump
External bypass system protects from heat build-up Factory preset Mi-T-M unloader Forged brass manifold Thermal relief valve Water filter with clear sleeve for screen inspection

Motor
Totally enclosed fan-cooled electric motor with thermal overload protection 10-foot power cord

Frame
Powder coated steel frame Totally enclosed belt guard 13-inch flat-free tires

Unit Includes
Quick connect nozzles – 0, 15, 25 and 40 50-foot x 3/8-inch non-marking hose 36-inch lance with insulated trigger gun

460V motors available as options.

Specifications

• PSI3000

• GPM4.8

• Horsepower/Motor10.0 HP, 230V, 3, 26.0A -OR- 10.0 HP, 460V, 3, 13.0A

• PumpGeneral

• Plug TypeNEMA 15-50P

Warranty Information

1 Year Electric Motor
1 Year Mi-T-M Unloader
7 Year General Pump

Additional Info

Options

• CX-0005 Insulated Dual Lance

  Has both a high and low pressure top that allows you to switch to the low pressure chemical injector without having to change tips – 36-inch

• CX-0062 460V on 10.0 HP, 3 Phase Models

  For when you have 460V of power available

• CX-0094 Stationary Option

  This option will remove the existing tall handle and wheels, which will be replaced with a short handle and rubber feet for stationary applications
