Stainless SteelWhite Antibacterialfinish366mm x 32mm DiaRated to 150kgAS1428.1-2009 CompliantMaterials & Features Goman stainless steel straight grab rails are available in a range of lengths and meet the requirements of AS1428.1-2009. The snap flange cove
Materials & Features

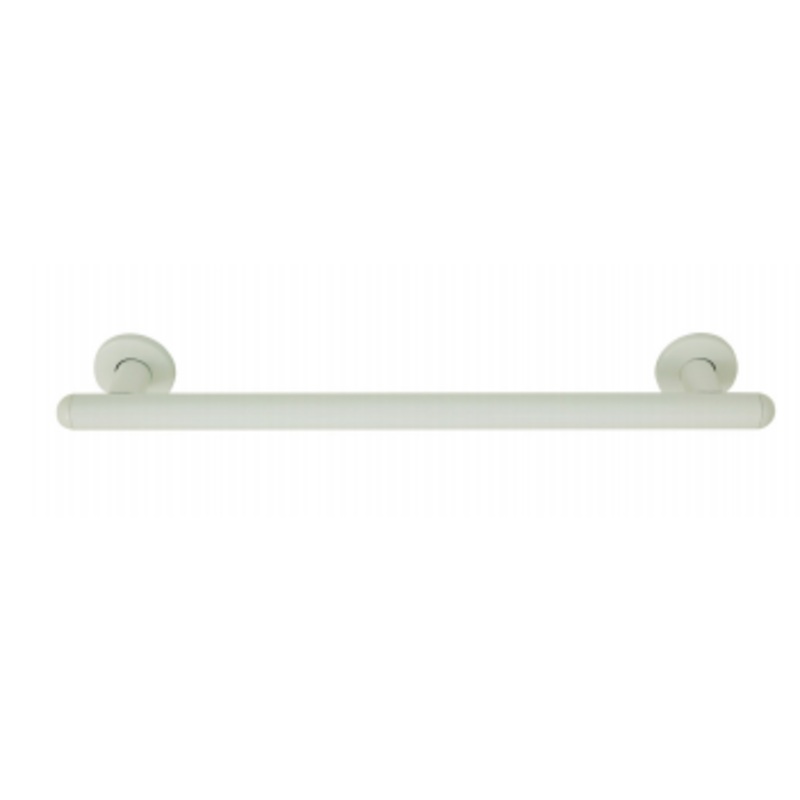

Goman stainless steel straight grab rails are available in a range of lengths and meet the requirements of AS1428.1-2009. The snap flange cover conceals the fixings.
Technical Detail
Rail: 32mm [Dia], 304 Satin Stainless Steel
Fixings: Included
Finish: White Anti-Bacterial
SWL: 150kg
Available Models
RBA4600-011 Straight Grab Rail 366mm RBA4600-021 Straight Grab Rail 516mm RBA4600-031 Straight Grab Rail 666mm RBA4600-041 Straight Grab Rail 816mm RBA4600-051 Straight Grab Rail 1116mm
Additional sizes available upon request
Installation
Warning: Grab rails are no stronger than the anchors or walls to which they are attached and must be firmly secured in order to support the loads for which they are intended. Refer local codes and Installation Instructions for location of fixing points, method of attachment, etc.
Important: Installation instructions and current rough-in details should be furnished with each fixture. Do not rough in without certified dimensions. Dimensions are subject to manufacturers tolerance of +/-10mm.
