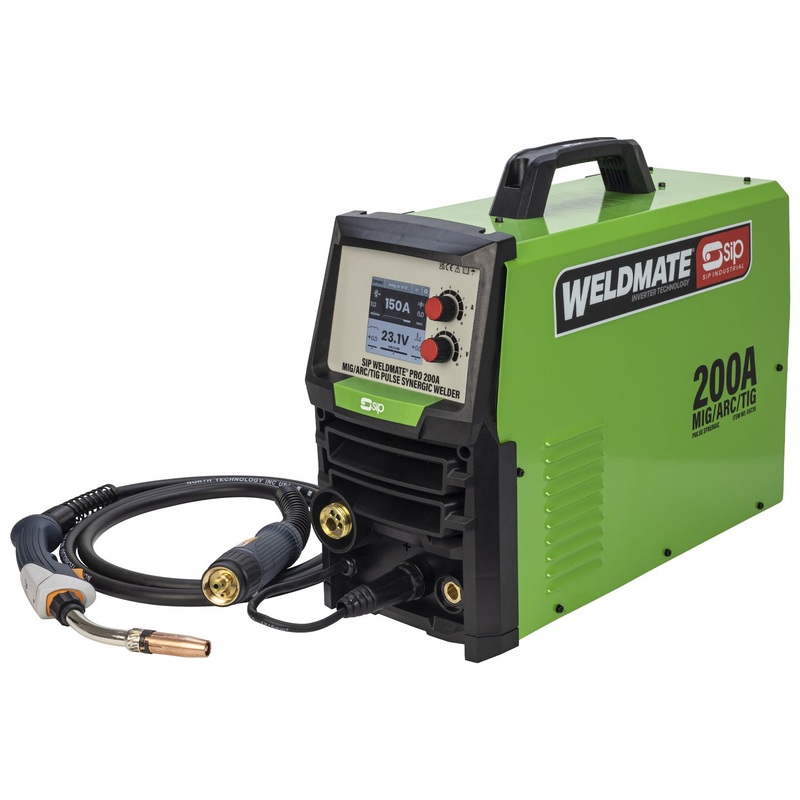

The SIP WELDMATE PRO 200A MIG/ARC/TIG Pulse Synergic Welder is a multi-process inverter welder specifically designed for use in professional fabrication workshops.

Fully compliant with Reg EU 2019/1784 (Eco Design for Welding Equipment), this welder features a 4th generation inverter which is above 80% energy efficient. This means it uses less power at the same output as older inverters, helping to lower operating costs.

For a simplified welding process, Pure Synergic Control allows users to adjust welding voltage and wire feed speed autonomously, while MIG Pulse functionality allows advanced users to achieve higher quality MIG welding on aluminium and greater control on ferrous metals.

• Multi-process MIG/ARC/TIG welder for greater flexibility
• Pure Synergic Control for more consistent and higher quality welds
• MIG Pulse functionality for setting parameters and arc characteristics
• Fully compliant with EU 2019/1784 (Eco Design for Welding Equipment)
• Heavy-duty aluminium wire feeder for smooth consistent flow of wire
• LCD screen with infinitely variable controls to select functions

Technical Specification

• ITEM NO. 05735
• Input Supply: 230v (16A)
• Output Voltage: 16.5v – 24v (MIG) / 15.5v – 22.5v (MIG Pulse) / 20.8v – 27.2v (ARC) / 10.8v – 17.2v (TIG)
• Output Current: 50A – 200A (MIG) / 30A – 170A (MIG Pulse) / 20A – 180A (ARC) / 20A – 180A (TIG)
• Duty Cycle @ 20C: 200A @ 30% (MIG) / 170A @ 30% (MIG Pulse) / 180A @ 30% (ARC) / 180A @ 30% (TIG)
• Wire Diameter: 0.8mm – 1mm
• Wire Spool Size: 5kg, 15kg
• Welding Material Thickness: 0.8mm – 6.4mm (mild steel) / 3.2mm – 7.9mm (aluminium)
• Protection / Insulation 21S / H
