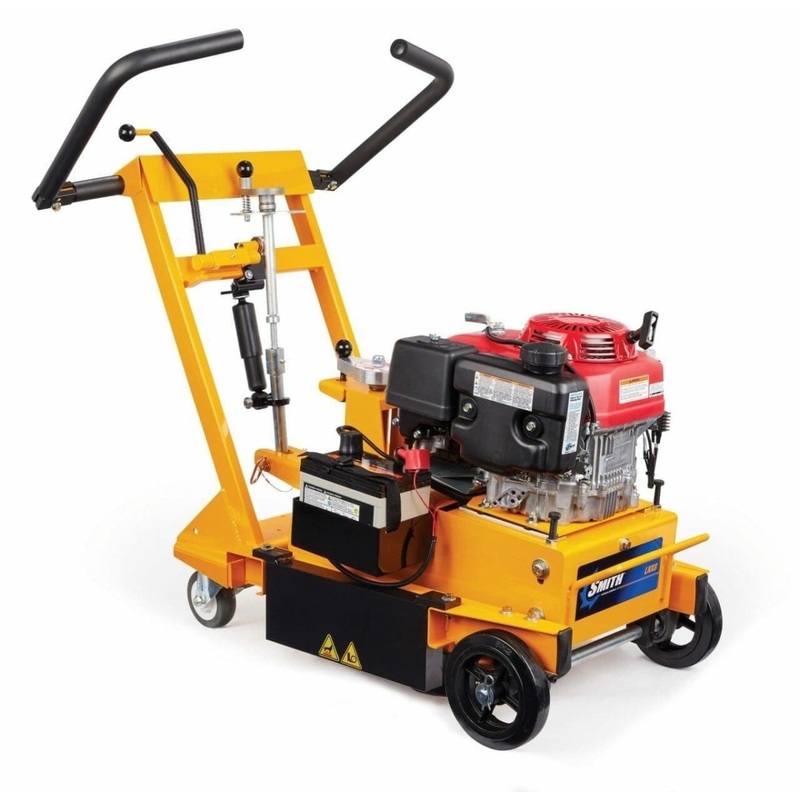

SMITH LNX8 Gasoline Rotary Eraser

The SMITH LNX8 is designed for removing coatings, traffic lines, thermoplastic, epoxy, paint, oil, grease, and high spots without sharp-edged grooves or road damage.

Used by striping contractors, airports, municipalities, and more for removing markings on asphalt and concrete.

Smith LNX8 with Depth Controlis also available

Standard Features

• Variable depth adjustment
• Engage cam lever
• Spring pressure control
• Vacuum port
• Dual feathering swivel wheels with brake
• Maintenance-free sealed drive
• Twin removable weight ballasts
• Tilt-up chassis for spindle access
• Spindle pitch leveler

Power OptionsLNX8.H13 – 13HP Honda gasoline engineRemoval and Speed

• 8″ wide
• 1/8″ depth/pass
• 800 SF/hr

Cutter Choices

• Coarse erasing spindles (72-pin PM3000)
• Medium erasing spindles (144-pin PM3001)
• Fine erasing spindles (216-pin PM3002)
• Carbide-pick planing disks
• Wire brush spindles

Options

• Ball hitch
• Tach/hour meter

Common Patterns

• 8″ Erase-it spindle in COARSE pattern.
  SURFACE PROFILE: SP5 SP8
• 8″ Erase-it spindle in MEDIUM pattern.
  SURFACE PROFILE: SP4 SP7
• 8″ Erase-it spindle in FINE pattern.
  SURFACE PROFILE: SP3 SP6
