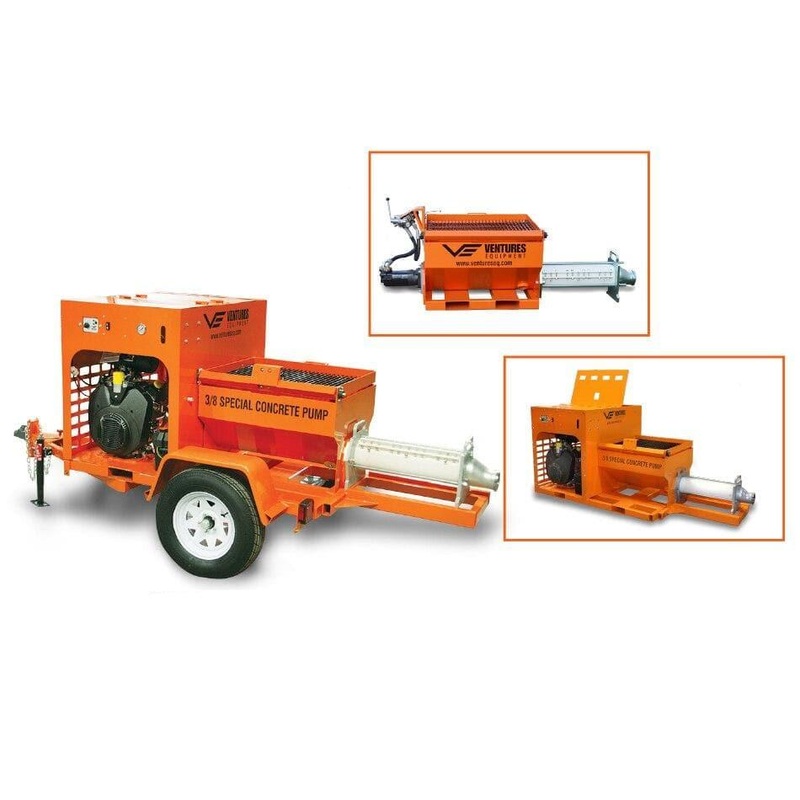

Ventures Equipment SS and ST Concrete Grout Pump – 3/8 SPECIAL is built to be rugged, robust and reliable

Portable progressive cavity pump for mortar and cementitious materials

Built for mid-range applications

Latest technology in progressive cavity pumping available on skid or trailer mount

The Ventures Equipment3/8 Special Concrete Pump isbuilt to be rugged, robust and reliable. Utilizing the latest technology in progressive cavity pumping, combined with proven variable speed hydraulics, the 3/8 Special offers simple and reliable operation. The unit provides constant output based on the design, eliminating material surge at hose end or nozzle. Variable speeds and reversible. Proudly built at our facility in North Texas, USA.

Materials / Applications

• Masonry Grouts
• SCC (Self-Consolidating Concrete)
• Pour & Form
• 3/8″ Ready Mix Concrete
• Shotcrete
• Slurry
• Light-weight Concrete

Simple and Reliable Operation at a Great Price

• Progressive Cavity Pump
• 8 Cubic Foot Hopper (225L)
• 10-12 Yards/Hour (9 Cubic Meters)
• 100 Gallon Water Tank (380L) *
• 4″ HD Output (101mm)
• 3/8″ Pea Gravel Capacity (10mm)
• Trailer 2600 Lbs. (1180 Kilograms) *
• Tow with 1/2 Ton Truck*
• Diesel and electric models available

* Applies to Trailer Mounted Pump

Fill Heights

• ST Gas and Diesel – 43.5″
• SS- 32.5″
• SSU – 26.5
