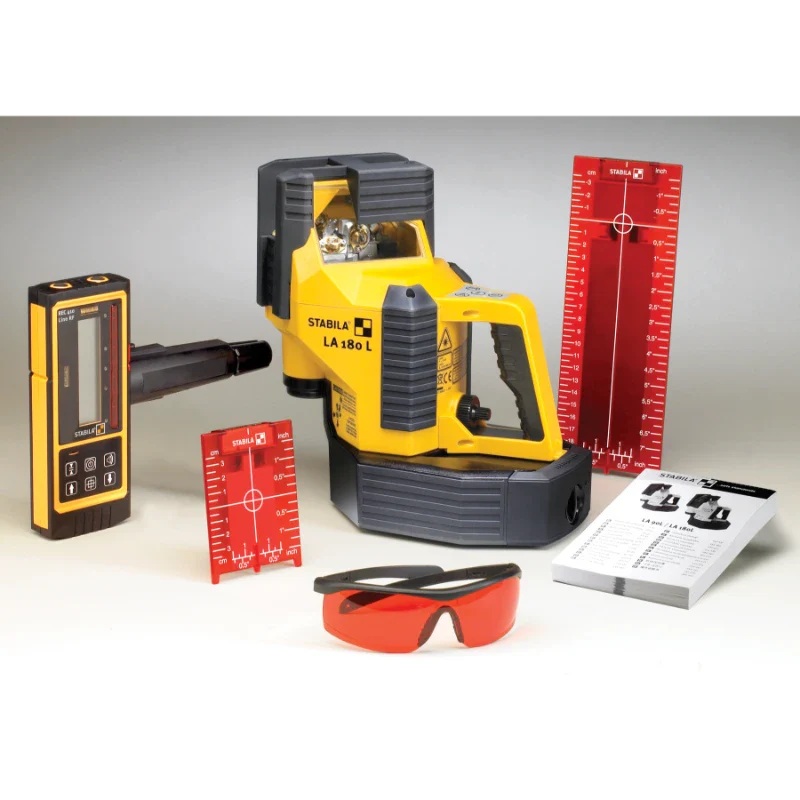

Stabila 02180 LA180L Laser Kit

LA 180L Layout Station with Auto Alignment

Use the Layout Station for laying out to 300ft Cut your labor costs by 50% .

Fully automatic, long range layout. Auto alignment allows you to layout square with only one person in just seconds. Layout over ranges above 50ft is a time-consuming and high risk job. When layout errors occur high follow-up costs will be the result. The LA 180 L self-leveling multi-line laser allows you to layout greater than 20ft up to 300ft fast and accurately. The REC 410 Line RF receiver controls the LA 180 L using the STABILA wireless AUTO ALIGNMENT technology. One press of a button and the laser adjusts automatically to the position of the receiver.

AUTO ALIGNMENT: fully automatic transfer of axes and creation of rightangles.

Functional housing shape positioning in room corners and over edges (e.g.concreteslab).

Applications

• This is a fast and precise layout tool. It is designed for applications >20ft up to 300ft.
• Commercial construction, HVAC, masonry, concrete and top end landscape jobs.
• Drywall construction suspending ceilings, positioning interior and partition walls within a range of 300ft.
• Framing – layout wall positions at the push of a button. Quickly establish square, even when the slab or foundation you’re working on is out of square.
• Concrete Layout forms perfectly straight and square.
• Optional laser and receiver mounts available for most re-usable forming systems.

Technical data

Laser class:2Output:< 1 mWLaser wavelength:635 nmSelf-levelling range +/-:5Levelling accuracy +/-:3/32 in @ 100 ftLine straightness +/-:1/8 in @ 100 ftLaser beam accuracy (down) +/-:3/32 in @ 100 ftMeasuring range of set receiver:328 ftMeasuring range of visible point:65 ftMeasuring range of visible line:65 ftOperating life:20 hProtection class:IP 54Tripod connection:5/8"-11
