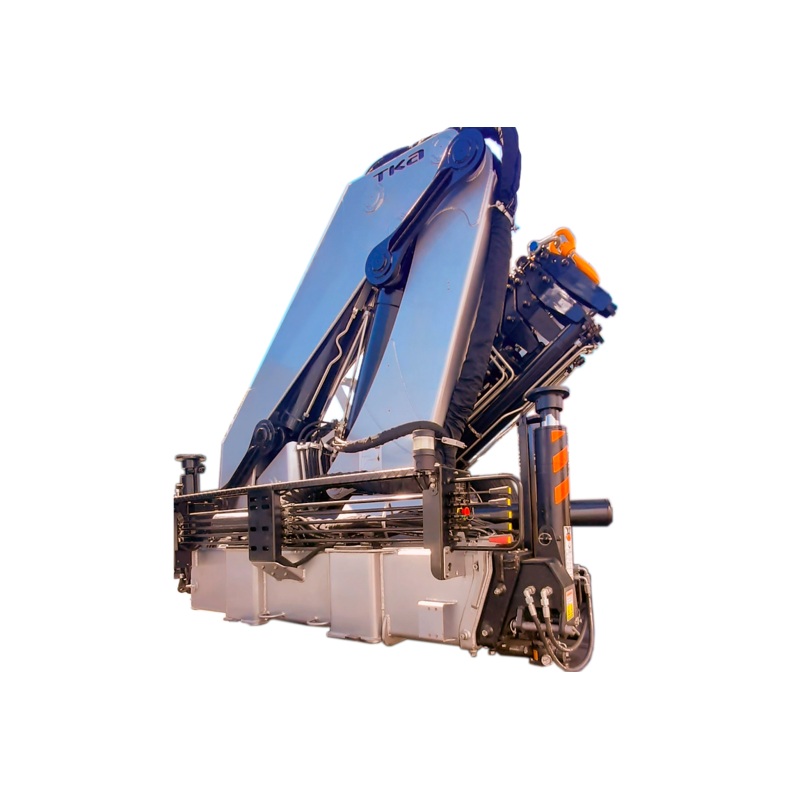

Name: TKA Cranes TKA 50.700 C 6 Hydraulic Knuckle Boom
SKU: A5196867390
Availability: InStock

TKA Cranes TKA 50.700 C 6 Hydraulic Knuckle Boom

$147.00 $148,095.24

Technical specifications for this crane model are listed below.Available AccessoriesFly Jib Preparation (Remote Control, Load Limiter, Inclinometer, Hose Cable Reel) Only available for 50700C 6H0MFly Jib 4H1MColor different from California Orange (standard

Security Policy (Protecting Your Data, Ensuring Your Safety)
Delivery Policy (Free shipping on orders over $30)
Return Policy (60 day easy Return)

SKU: A5196867390 Category: Diamond Tools

Description Reviews (0)

Technical specifications for this crane model are listed below.

Available Accessories

Fly Jib Preparation (Remote Control, Load Limiter, Inclinometer, Hose Cable Reel) Only available for 50700C 6H0M
Fly Jib 4H1M
Color different from California Orange (standard for TKA Cranes)
Gear Pump
Piston Pump
Manual Pump (for basket safety use)
Emergency Stop for Cranes Without Remote Control
Electrical Load Limiter + Inclinometer + Load Limiter Light Indicator + Load Sound Indication (for cranes with remote control)
Hydraulic Load Limiter
Remote Control with 6 Levers (4 + 2 extras) + Emergency Stop
Remote Control Scanreco with 6 Levers + Emergency Stop
Mining Kit (Remote Control, Emergency Stop, Load Limiter, Truck Inclinometer, Blocked Work Over Truck Cabin)
Remote Control Stabilizer Drive Kit for Cranes with Mining Kit
Truck Inclinometer for Cranes Without Remote Control
Winch with 1.5 Ton Capacity with Upper and Lower Pulleys
Winch with 3.0 Ton Capacity with Upper and Lower Pulleys
Drill or Winch Hydraulic Outlet
Drill AND Winch Hydraulic Outlet

Specification	Metric	Imperial
Max. Manual Vertical Reach (Base / Fly Jib)	20,30 m / 30,30 m	66.6 ft / 99.4 ft
Max. Hydraulic Vertical Reach (Base / Fly Jib)	15,90 m / 25,74 m	52.2 ft / 84.4 ft
Max. Manual Horizontal Reach (Base / Fly Jib)	20,30 m / 29,40 m	66.6 ft / 96.5 ft
Max. Hydraulic Horizontal Reach (Base / Fly Jib)	15,90 m / 27,63 m	52.2 ft / 90.6 ft
Stabilizer Spread (Front)	7,7 m	25.3 ft
Boom Elevation Angle	80	80
Max. Operating Pressure	275 bar	3,988 psi
Boom Slewing Angle	400	400
Slewing Torque	6,74 tfm	48,789 lbfft
Dead Weight Base (6H0M)	5.650 kg	12,457 lbs
Dead Weight 6H0M + Fly Jib	6.600 kg	14,550 lbs
Fitting Space Required	1,7 m	5.6 ft
Oil Tank Capacity	250 L	66.0 gal
Minimum GVW Required	23.000 kg	50,706 lbs
