Description

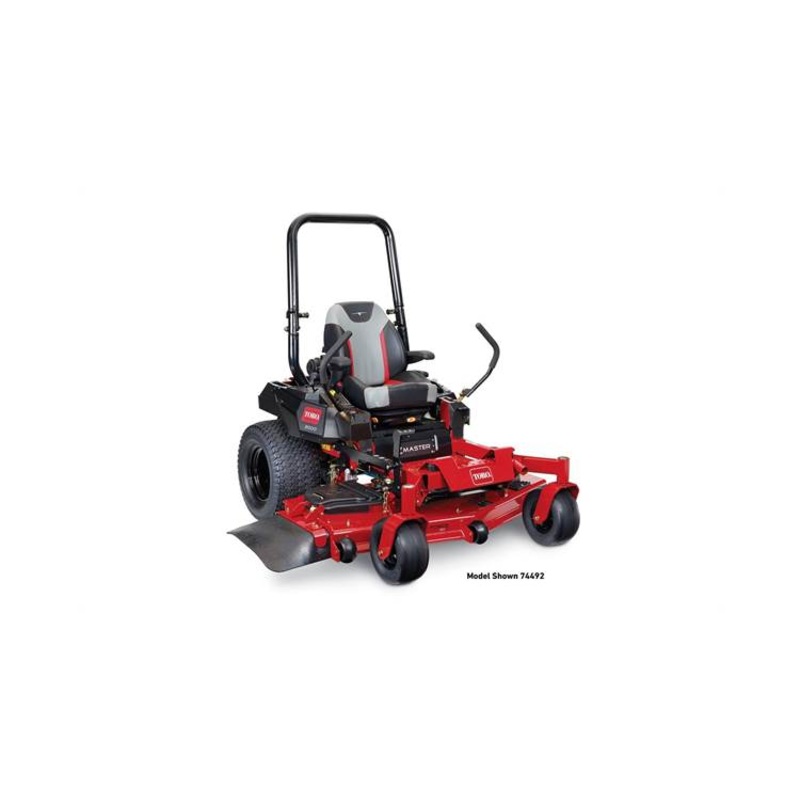

7500-D Series 60″ (152 cm) 25 HP 1267cc Diesel Rear Discharge (72028)

Looking for a workhorse mower that’s easy to operate and gets the job done faster? Check out the Toro Z Master 7500-D. Maximum productivity with a rear discharge 60″ commercial cutting deck. It delivers all the speed and maneuverability of a zero-turn, along with the superior quality of cut you expect from Toro.

Highlights

• Powerful 25 HP 1267cc Yanmar Diesel Engine
• 60″ (152.4cm) Rear Discharge TURBO FORCE deck
• Mow smarter with Horizon Technology that lets you choose the right operating mode for the conditions, saving fuel costs while maintaining top-level performance
• Deluxe suspension seat with iso-mounts to reduce operator fatigue and vibration

Features

• Superior Performance: Powered by a Tier 4-compliant, three-cylinder, 1.6 liter, 37 hp Yanmar diesel engine, this mower is packed with power to tackle the toughest mowing jobs.

Specifications

• Engine: 25 hp* 1267ccYanmar Diesel
• Fuel Capacity: Diesel/12.5-Gal (47.3 L)
• Cutting Width: 60″ (152.4 cm) (Rear Discharge)
• Air Filter: Heavy-Duty Canister Air Cleaner Air Filtration System with Electronic Vacuum Sensor
• Anti-Scalp Wheels: 4 Standard, 2 Side Skids
• Armrests: Standard
• Blade Tip Speed: 18,200+ ft/min
• Blade Type: 3 blades at 20.5″ length
• Caster Tires: 15″ x 6″ – 6″ (38.1 x 15.2 x 15.2 cm) Flat-Free Semi-Pneumatic
• Clutch: Wet Disc
• Deck Design: 7-Gauge TURBO FORCE w/ Bull-Nose Bumper
• Drive System: 17.84 cu in Hydro-Gear HGM-H Motors with 18 cc Kanzaki Pump
• Drive Tires: 26″ x 12″ – 12″ (66.0 x 30.5 x 30.5 cm)
• Engine Horsepower: 25 HP
• Engine Displacement: 1267cc
• Foot Operated Height of Cut: Height of Cut
• Ground Speed: 12.5 mph (20.1 km/h)
• Height: ROPS Height (Folded) 51″ (129.5 cm), ROPS Height (Upright) 71.8″ (182.4 cm)
• Height of Cut: 1.0″ – 5.5″ (2.5 – 14.0 cm)
• Hour Meter: Horizon Technology
• Length: 96.48″ (245.1 cm)
• ROPS: Standard
• Seat: Deluxe Suspension (Iso-Mount, Flip-Up)
• Spindle Bearings: Maintenance-Free
• Spindle Housing: 9″ (22.9 cm) Diameter Cast Aluminum, 1″ (2.5 cm) Heavy-Duty Spindle Shaft
• Steering Controls: 1-5/8″ (4.1 cm) Dia. Grips; Adjustable, Dampened
• Weight: 1,957 lbs. (887.7 kg)
• Width: Deck Clearance Width 66.3″ (168.4 cm)

NOTES:* The gross horsepower of these diesel engines was laboratory rated at 3600 rpm by the engine manufacturer in accordance with SAE J1940 or SAE J2723. As configured to meet safety, emission and operating requirements, the actual engine horsepower on these mowers will be significantly lower.**See retailer for warranty details.
