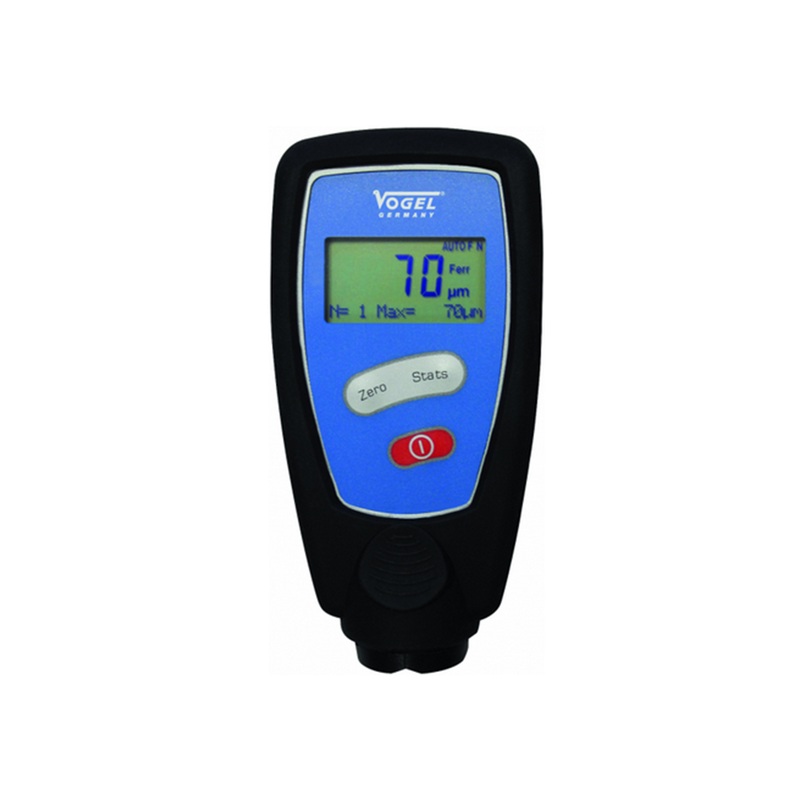

Vogel Universal Coating Thickness Gauge can measure all types of coating thickness. It is simple to use with commonly referenced data like mean values, standard deviations and min max values). It can calculate the coating thickness over both ferrous and non-ferrous materials without any pre-calibration.

It is widely used in painting companies, spray and powder coating companies as well as electro plating companies.

Features

• Works on All kinds of Coatings without Damage
• Quick and Flexible Coating Measurements especially for the paint industry
• Reading in m and mils for the finest of coatings
• Built in Probe Measures for portability
• Cylindrical and Curved Surface Measurements with plastic V Groove
• Measure in Any Position even upside down
• Measures Insulating layers for non ferrous metals
• Measures Non Magnetic Layers on metal surfaces
• Calibration Free just switch on and measure
• ASTM/ISO/BS Industry Standards assure that values are within norms

Specifications

Reading Resoluion: 1.0 / 2.0 / 5.0 m
Measuring range Fe (Ferrous): 0 – 3500 m
Measuring range NFe (Non Ferrous): 0 – 3000 m
Max. total accuracy: 2 m
Probe: built-in
Article dimension: 110 x 50 x 25 mm
